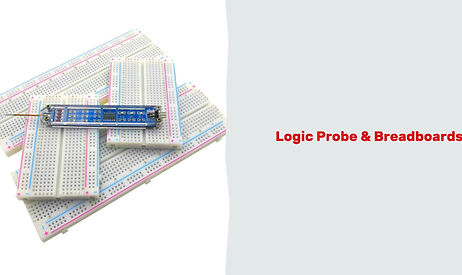

🟥 830 Point Breadboard (2pcs), 400 Point Breadboard( 2pcs) and Digital Logic Probe
🟥 TTL, CMOS, LSI, all logic level (3.3V and 5V)
🟥 HIGH, LOW and High Impedance LED indicator lights
🟥 Retractable Probe and Acrylic transparent case
🟥 Breadboards with Self Adhesive tape backing

🟢 LOGIC Probe

Acrylic casing
TTL, CMOS, LSI, all logic level (3.3V and 5V
HIGH, LOW and HIGH Impedance LED indicator lights
Retractable probe
Acrylic casing assembly required by buyer
3pcs acrylic board and 4pcs screw included

🟢 Breadboards

830 Point Breadboard (2pcs)
400 Point Breadboard( 2pcs)
Interlock Breadboards with Self Adhesive tap backing
